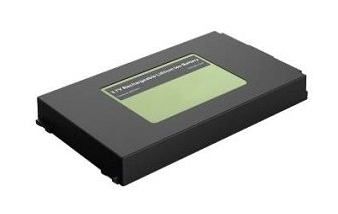

3.7V 8300mAh Lithium Polymer Battery for Data Collection Terminal
Product Description
Cell model：4552103-4150mAh
Battery specification: 4552103-1S2P-8300mAh-3.7V
Nominal voltage：3.7V
Nominal capacity：8300mAh
Charging voltage: 4.35V
Charging current: ≤3A
Discharging current: 1.6A
Instant discharging current: 3A
End-off voltage: 3.0V
Internal resistance: ≤180mΩ
Battery weight: 120g
Product dimension: 105*105*5mm（Max）
Charging temperature：0～45℃
Discharging temperature: -10~+55℃
Storage temperature: -10～35℃
Battery case: simple package
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, etc.
Application field: data collection terminal, handheld tester, portable handheld equipment
Product features
1. The Battery for Data Collection Terminal is small in size, light in weight and easy to assemble.
2. Connector plug terminal: adopt MOLEX output mode to improve conductivity reliability.
3. The battery adopts imported protection chip, which has good stability, high monitoring accuracy and accurate control, which eliminates potential safety hazards.
4. Wire output mode can improve conductivity reliability.
5. The product has good safety performance, good discharge performance, long cycle life, and conforms to the principles of low carbon, energy saving and environmental protection.
