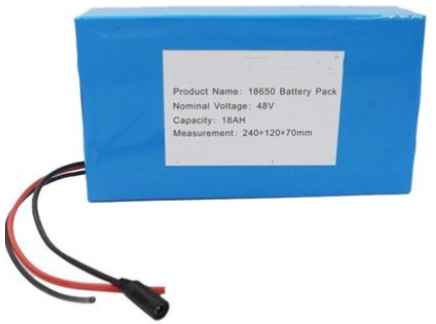

48V 18Ah Transportation Robotic Battery
Combination method: ICR18650-13S9P
Battery model: 18650
Standard voltage: 48V
Nominal capacity: 18Ah
Standard continuous discharge current: 2C
Maximum continuous discharge current: 5C
Working temperature: charging: 0~45℃; discharging: -20~60℃
Product size: MAX240*120*70mm
Cycle life: 500 times
Internal resistance of finished product: ≤150mΩ
Standard weight: 9.2Kg
Main features: with communication function, power display, battery balance, various protection functions
Output mode: UL1007/14AWG wire length 300mm (can be customized according to customer requirements)
The design for the battery pack of the cargo handling terminal:
1) Protection board (PCM): Mainly a protection circuit designed for rechargeable high-capacity battery packs. Due to the chemical characteristics of the lithium battery itself, it needs to provide protection functions such as overcharge, over discharge, short circuit, overcurrent and overtemperature. In order to avoid dangers such as burning and explosion.
2) Protection IC (Protection IC): The main protection function chip of the design scheme, which performs online monitoring of overcharge, over discharge, overcurrent, short circuit and other functions of the cell. Make the battery core work in a safe, stable and efficient range.
3) Overcurrent protection chip (PTC): Mainly designed for secondary protection function. The PTC recoverable thermal fuse has the dual functions of overcurrent protection and automatic recovery. The PTC in the battery product can prevent the battery from high temperature discharge and unsafe high current.
4) Field effect tube (MOSFET): MOSFET tube, which acts as a switch in the protection circuit.
5) Battery pack packaging: PVC casing.
6) Application areas: handling robots, industrial robots
