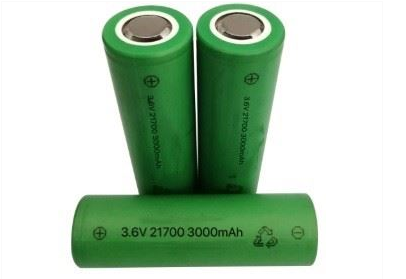

21700-3000mAh 10C Discharge Type
Battery model: 21700 3000mAh
Nominal Voltage: 3.6V
Charging Ending Voltage: 4.20±0.05V
Discharge Cut-off Voltage: 2.75V
Internal Impedance: 11±2mΩ
Standard Charging Current: 0.5C
Fast Charging Current: 1C
Standard Discharge Current: 0.5C
Max. Continuous Discharge Current: 10C
Max. Pulse Discharge Current: 15C (<200ms)
Weight: 69.0 ± 2.0 g
Max. Dimension: Diameter (φ): 21.75±0.15mm Height (H): 70.1±0.2mm
Working Temperature: Charging: 0℃~ +10℃(0.2C), 10℃~ +45℃(0.5C)
Discharging: -20℃~ +50℃
Storage Temperature: Within one month: -20℃~ +60℃
Within six months: -20℃ ~ +45℃
Within one year: -20℃~ +25℃
Application: vacuum cleaners, high-power electric toys, nail guns, electric wrenches, electric drills, electric saws, angle grinders, electric weeders, bicycle and other electric tools.
Advantages of 21700 lithium battery：
1. The capacity of 21700 lithium battery cells is increased by 35%.
2. The energy density of the 2.21700 lithium battery system is increased by about 20%.
3. The cost of the system is expected to drop by about 9%.
4. The weight of the system is expected to drop by about 10%. The overall volume of the 21700 lithium battery is larger than that of the 18650 lithium battery. As the monomer capacity increases, the energy density of the monomer is higher, so the number of battery monomers required under the same energy can be reduced by about 1/3.
5. The energy density of the battery is increased by more than 20%, and the energy density of the 21700 battery is better than that of the 18650 battery.
