Product Description

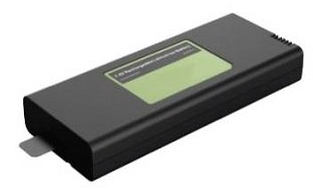

The packaging of Battery for Navigation Terminal is simple, reliable, and easy to install. The battery adopts JST plug output mode to improve conductivity reliability. It has good safety and good low-temperature discharge performance. It can be charged at low temperatures, for example, at -40°C with 50% power. The battery pack has a long cycle life, meets the characteristics of low carbon, energy saving and environmental protection.
Battery management: It adopts imported protection chip, which has good stability, high monitoring accuracy, accurate control, and has ESD protection and temperature protection functions, which eliminates potential safety hazards.
Details
Cell model：18650-2200mAh-3.6V
Battery specification: 18650-2S3P-6600mAh-7.2V
Product dimension: 144*59.8*22.5mm（Max）
Nominal voltage：7.2V
Nominal capacity：6000mAh
Charging voltage: 8.4V
Charging current: ≤3A
Discharging current: 1.2A
Instant discharging current: 3A
End-off voltage: 5.0V
Internal resistance: ≤180mΩ
Battery weight: 350g
Charging temperature：0～45℃
Discharging temperature: -40～+60 ℃
Storage temperature: -20～+35℃
Lithium ion battery protection: short circuit protection, overcharge protection, over-discharge protection, over temperature protection, overcurrent protection, ESD protection, etc.
Application field: radar apparatus, navigation equipment, low temperature discharge equipment.
