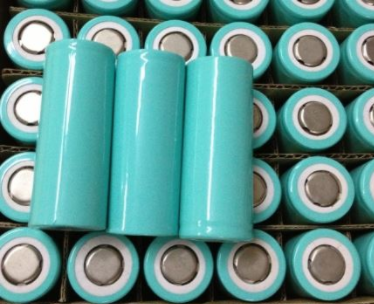

3.2V IFR26650-3600mAh
Battery model：3.2V IFR26650-3600mAh
Typical capacity：3600mAh (0.5C)
Energy density: 135Wh/kg
Internal resistance: ≤20mΩ
Cell weight: 85g
Operation Voltage: 2.0V~3.65V
Standard Charge Model: Cell is charged with constant current of 0.5C to 3.65 V, and the it is converted to 3.65V constant voltage charging until the charging current is less than 0.01C (36mA).
Standard Charge Current: 1800mAh
Max. Charge Current: 7200mAh
Standard Discharge Current: 1800mAh
Max. Discharge Current (Continuous): 10800mAh
Max. Discharge Current (Long Pulse): 18000mA，60s
Max. Discharge Current (Short Pulse): 28800mA，10s
100%DOD cycle life: ≥2000Cycles
80%DOD cycle life: ≥4000Cycles
50%DOD cycle life: ≥6000Cycles
Charge Operating Temperature : 0℃~45℃(Environment temperature）
Discharge Operating Temperature : -20℃~60℃(Environment temperature)
Storage Temperature: -20℃~45℃
Verified by DOE optimization experiment, strict selection and supervison of incoming material, strict manufacturing process controlled, to ensure the battery cell high consistency on static state of initial matching, charge-discharge dynamic process and attenuation performance of the long-term cycling.
Cell Part number: IFR26650-3600mAh, LFP Series
Cell dimension:
Diameter 26.3±0.2mm, Height 65.6±0.3mm
Application：
Energy storage power station, telecom station, UPS, solar wind power generation, ships, yachts, railway, electric motorcycle, golf cart, golf trolley, medical equipment.
Characteristic advantages：
Long cycles：100%DOD 2000+ cycles；80%DOD 4000+ cycles.
High safety：Non-explosion, Non-fire, Non-leakage.
Consistency：High consistency performance from cell initial static grouping process to dynamic diversification after assembly process and attenuation characteristics during cell cycling.

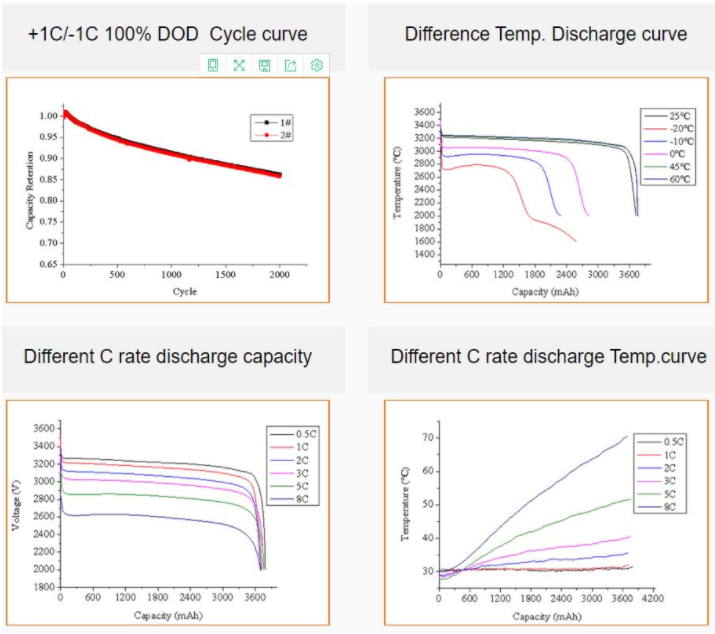

Characteristic Curve：
